240s Greeting Card Recordable Voice Chip with DIY Music

If you send sound file to us with mp3 or wave file format so that we could record sound into the chip. Slip switch or push button activates the music. Other methods of activation can also be achieved such as light, motion or vibration.

Material: paper
Battery: 3*AG10 button battery
Speaker: 8Ω0.5w
Music: Mp3 or WAV
Custom music: 1s to 240s are available.
Components: voice IC+PCB board+speaker+batteries.


Description

DIY Greeting Module, 240s Recordable Greeting Audio Card Module, Voice Sound Record Chip with Battery, Mic, Speaker for Gift, Children’s Toys. Trigger The Button to Play (Single Play).

240s Greeting Card Recordable Voice Chip Music Sound Chip Module Musical DIY

Features:

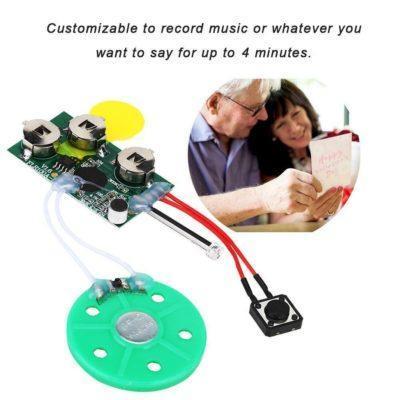

1. Customizable to record music or whatever you want to say for up to 4 minutes.
2. Function: light sense to trigger button and play music.

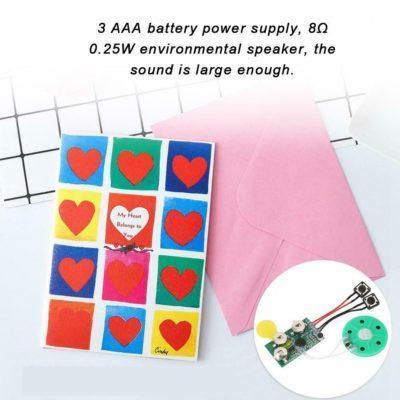

3. 3 AAA battery power supply, 8Ω 0.25W environmental speaker, the sound is large enough.

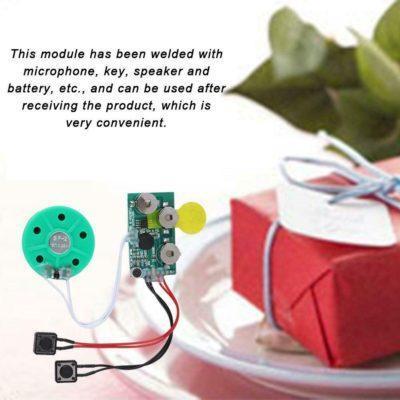

4. This module has been welded with microphone, key, speaker and battery, etc., and can be used after receiving the product, which is very convenient.

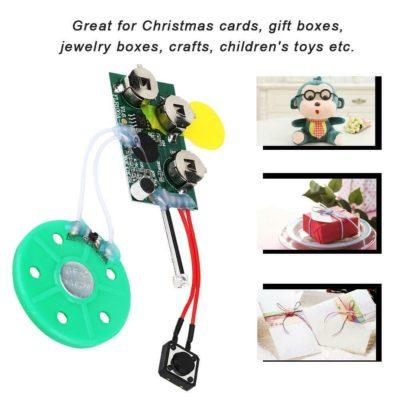

5. Great for Christmas cards, gift boxes, jewelry boxes, crafts, children’s toys etc.

  Materials PCBA
 Control type Button control, light sensor, vibration or customized
 Sound format MP3/WAV or customized
 Battery Ag3*3/Ag10*3/Ag13*3 or rechargeable or customized
 Outline Dimension Customized
Certifications CE/ROHS/FCC
 Play time 1-180s or customized
  Service life 10s audio 300-500 times

Specification:
Condition: 100% Brand New
Recording time: 4 minutes
Working voltage: 3 button batteries 3.0V-4.5V (Batteries are included)
You can repeat the recording, each recording will replace the last recording
Board size (L*W*H): 46 * 27 * 10mm/1.8 * 1.1 * 0.4in
Speaker Diameter: Approx. 40mm/1.6in
Speaker Thickness: Approx. 5mm/0.2in
Key Cable Length: Approx. 5cm/2in
Optional Play Mode: Single Play, Loop Play

Package List:
1 * Greeting Card Module

Recording and Playback Operation:
1. Press the record button, hear the “DI” sound and release the record button, then speak at the distance of 5-10 cm from the microphone to start recording.
2. Press the record button again, and hear the drop sound release button to indicate that the recording is complete.
3. Then press the play button again to play the currently recorded sound. Press the play button again during playback to stop the sound.

Note:
The key with red wire is recording key, and the key with black wire is playing key.
